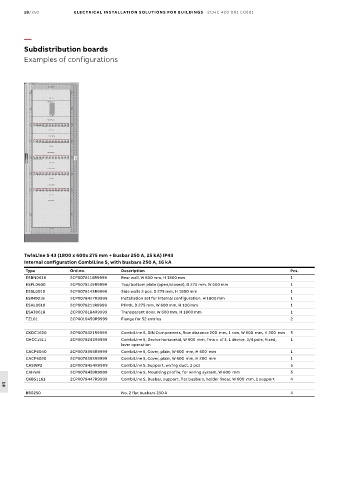

18/350 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Examples of configurations

1
+0 +01 ESBN0618
CACP6020
+01.80
CHCC1511

+01.30
CKDD1620
+01.10
CKDD1620
+01.50
CKBS1164
+01.90
CKDD1620
+01.20
CKDD1620
+01.60
CKDD1620
+01.70
CACP6040

+01.40

TwinLine S 43 (1800 x 600x 275 mm + Busbar 250 A, 25 kA) IP43
Internal configuration CombiLine S, with busbars 250 A, 16 kA
Type Ord.no. Description Pcs.
ESBN0618 2CPX078116R9999 Rear wall, W 600 mm, H 1800 mm 1
ESPL0600 2CPX078149R9999 Top/bottom plate (open/closed), D 275 mm, W 600 mm 1
ESSL0018 2CPX078143R9999 Side walls 2 pcs, D 275 mm, H 1800 mm 1
ESIN0018 2CPX078427R9999 Installation set for internal configuration, H 1800 mm 1
ESAL0610 2CPX078211R9999 Plinth, D 275 mm, W 600 mm, H 100 mm 1
ESAT0618 2CPX078184R9999 Transparent door, W 600 mm, H 1800 mm 1
TZ101 2CPX010450R9999 Flange for 52 entries 2

CKDC1620 2CPX078321R9999 CombiLine S, DIN Components, Row distance 200 mm, 1 row, W 600 mm, H 200 mm 5
CHCC1511 2CPX078243R9999 CombiLine S, Device horizontal, W 600 mm, Tma x xT3, 1 device, 3/4 pole, fi xed, 1
lever operation
CACP6040 2CPX078356R9999 CombiLine S, Cover, plain, W 600 mm, H 400 mm 1
CACP6020 2CPX078353R9999 CombiLine S, Cover, plain, W 600 mm, H 200 mm 1
CASWP2 2CPX078454R9999 CombiLine S, Support, wiring duct, 2 pcs 5
CAHW6 2CPX078459R9999 CombiLine S, Mounting profile, for wiring system, W 600 mm 5
CKBS1161 2CPX078447R9999 CombiLine S, Busbar, support, flat busbars, holder linear, W 600 mm, 1 support 4

18
BR0250 No. 2 flat busbars 250 A 4
