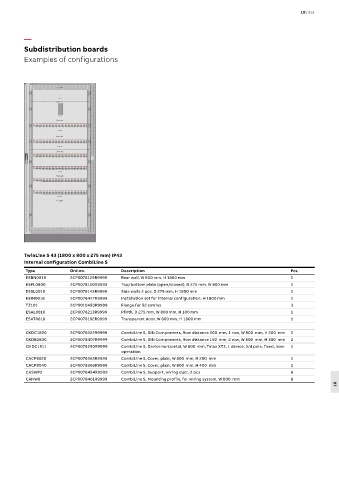

Subdistribution boards
Examples of configurations

1
+0 +01 ESBN0818
CACP8020
+01.10
CHDC1511

+01.20
CKDD1820
+01.30
CKDD1820
+01.40
CKDB2830

+01.50
CKDB2830

+01.60
CACP8040

+01.70

TwinLine S 43 (1800 x 800 x 275 mm) IP43
Internal configuration CombiLine S
Type Ord.no. Description Pcs.
ESBN0818 2CPX078125R9999 Rear wall, W 800 mm, H 1800 mm 1
ESPL0800 2CPX078150R9999 Top/bottom plate (open/closed), D 275 mm, W 800 mm 1
ESSL0018 2CPX078143R9999 Side walls 2 pcs, D 275 mm, H 1800 mm 1
ESIN0018 2CPX078427R9999 Installation set for internal configuration, H 1800 mm 1
TZ101 2CPX010450R9999 Flange for 52 entries 3
ESAL0810 2CPX078213R9999 Plinth, D 275 mm, W 800 mm, H 100 mm 1
ESAT0818 2CPX078192R9999 Transparent door, W 800 mm, H 1800 mm 1

CKDC1820 2CPX078322R9999 CombiLine S, DIN Components, Row distance 200 mm, 1 row, W 800 mm, H 200 mm 2
CKDB2830 2CPX078407R9999 CombiLine S, DIN Components, Row distance 150 mm, 2 row, W 800 mm, H 300 mm 2
CHDC1511 2CPX078250R9999 CombiLine S, Device horizontal, W 800 mm, Tmax XT3, 1 device, 3/4 pole, fixed, lever 1
operation
CACP8020 2CPX078363R9999 CombiLine S, Cover, plain, W 800 mm, H 200 mm 1
CACP8040 2CPX078366R9999 CombiLine S, Cover, plain, W 800 mm, H 400 mm 1
CASWP2 2CPX078454R9999 CombiLine S, Support, wiring duct, 2 pcs 6
CAHW8 2CPX078461R9999 CombiLine S, Mounting profile, for wiring system, W 800 mm 6
