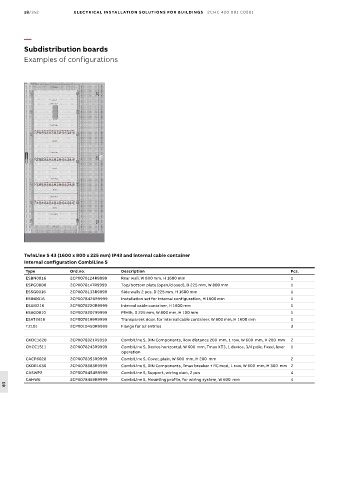

18/352 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Examples of configurations

+0 +01 ESBN0816
1
CACP6020
+01.10
CHCC1511

+01.20
CKDR1630

+01.40
CKDR1630

+01.50
CKDD1620
+01.30
CKDD1620
+01.60
CACP6020

+01.70

TwinLine S 43 (1600 x 800 x 225 mm) IP43 and internal cable container
Internal configuration CombiLine S
Type Ord.no. Description Pcs.
ESBN0816 2CPX078124R9999 Rear wall, W 800 mm, H 1600 mm 1
ESPG0800 2CPX078147R9999 Top/bottom plate (open/closed), D 225 mm, W 800 mm 1
ESSG0016 2CPX078133R9999 Side walls 2 pcs, D 225 mm, H 1600 mm 1
ESIN0016 2CPX078426R9999 Installation set for internal configuration, H 1600 mm 1
ESAI0216 2CPX078220R9999 Internal cable container, H 1600 mm 1
ESAG0810 2CPX078207R9999 Plinth, D 225 mm, W 800 mm, H 100 mm 1
ESAT2616 2CPX078199R9999 Transparent door, for internal cable container, W 800 mm, H 1600 mm 1
TZ101 2CPX010450R9999 Flange for 52 entries 3

CKDC1620 2CPX078321R9999 CombiLine S, DIN Components, Row distance 200 mm, 1 row, W 600 mm, H 200 mm 2
CHCC1511 2CPX078243R9999 CombiLine S, Device horizontal, W 600 mm, Tmax XT3, 1 device, 3/4 pole, fixed, lever 1
operation
CACP6020 2CPX078353R9999 CombiLine S, Cover, plain, W 600 mm, H 200 mm 2
CKDR1630 2CPX078383R9999 CombiLine S, DIN Components, Tmax breaker + RC mod, 1 row, W 600 mm, H 300 mm 2
CASWP2 2CPX078454R9999 CombiLine S, Support, wiring duct, 2 pcs 4
CAHW6 2CPX078459R9999 CombiLine S, Mounting profile, for wiring system, W 600 mm 4
