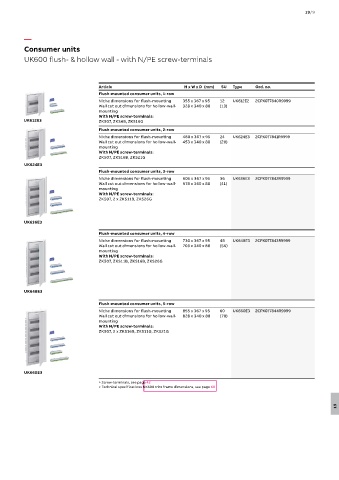

Consumer units
UK600 flush- & hollow wall - with N/PE screw-terminals

Article H x W x D (mm) SU Type Ord. no.
Flush-mounted consumer units, 1-row
Niche dimensions for flush-mounting 355 x 367 x 95 12 UK612E2 2CPX077840R9999
Wall cut out dimensions for hollow-wall- 328 x 340 x 88 (13)
mounting
With N/PE screw-terminals:
UK612E3 ZK507, ZKS6B, ZKS16G
Flush-mounted consumer units, 2-row
Niche dimensions for flush-mounting 480 x 367 x 95 24 UK624E3 2CPX077841R9999
Wall cut out dimensions for hollow-wall- 453 x 340 x 88 (28)
mounting
With N/PE screw-terminals:
ZK507, ZKS16B, ZKS21G

UK624E3
Flush-mounted consumer units, 3-row
Niche dimensions for flush-mounting 605 x 367 x 95 36 UK636E3 2CPX077842R9999
Wall cut out dimensions for hollow-wall- 578 x 340 x 88 (41)
mounting
With N/PE screw-terminals:
ZK507, 2 x ZKS11B, ZKS26G

UK636E3

Flush-mounted consumer units, 4-row
Niche dimensions for flush-mounting 730 x 367 x 95 48 UK648E3 2CPX077843R9999
Wall cut out dimensions for hollow-wall- 703 x 340 x 88 (56)
mounting
With N/PE screw-terminals:
ZK507, ZKS11B, ZKS16B, ZKS26G

UK648E3
Flush-mounted consumer units, 5-row
Niche dimensions for flush-mounting 855 x 367 x 95 60 UK660E3 2CPX077844R9999
Wall cut out dimensions for hollow-wall- 828 x 340 x 88 (70)
mounting
With N/PE screw-terminals:
ZK507, 2 x ZKS16B, ZKS11G, ZKS21G

UK660E3
> Screw-terminals, see page 42
> Technical specifications UK600 trim frame dimensions, see page 60
