19/12 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

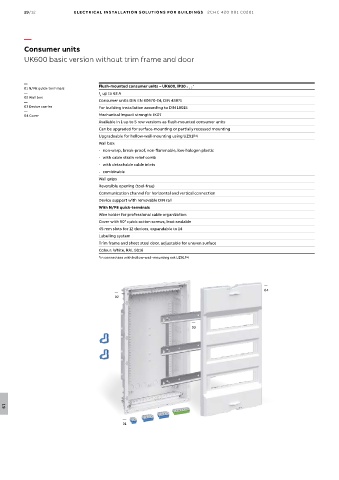

Consumer units
UK600 basic version without trim frame and door

— *
01 N/PE quick-terminals Flush-mounted consumer units – UK600, IP30 - , ;
— I up to 63 A
n
02 Wall box
— Consumer units DIN EN 60670-24, DIN 43871
03 Device carrier For building installation according to DIN 18015
—
04 Cover Mechanical impact strength: IK07
Available in 1 up to 5 row versions as flush-mounted consumer units
Can be upgraded for surface-mounting or partially recessed mounting
Upgradeable for hollow-wall-mounting using UZ91P4
Wall box:
- non-warp, break-proof, non-flammable, low-halogen plastic
- with cable strain relief comb
- with detachable cable inlets
- combinable
Wall grips
Reversible opening (tool-free)
Communication channel for horizontal and vertical connection
Device support with removable DIN rail
With N/PE quick-terminals
Wire holder for professional cable organization
Cover with 90° quick-action screws, lead-sealable
45 mm slots for 12 devices, expandable to 14
Labelling system
Trim frame and sheet steel door, adjustable for uneven surface
Colour: White, RAL 9016
*in connection with hollow-wall-mounting set UZ91P4

—
