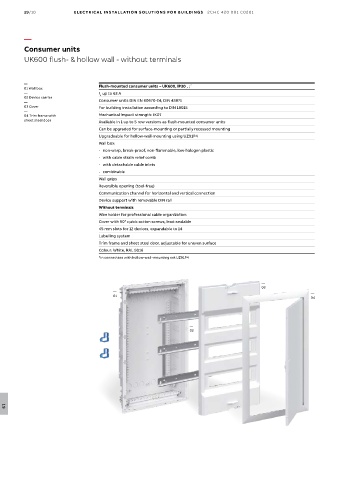

19/10 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Consumer units
UK600 flush- & hollow wall - without terminals

— Flush-mounted consumer units – UK600, IP30 , ; *
01 Wall box
— I up to 63 A
n
02 Device carrier
— Consumer units DIN EN 60670-24, DIN 43871
03 Cover For building installation according to DIN 18015
—
04 Trim frame with Mechanical impact strength: IK07
sheet steel door Available in 1 up to 5 row versions as flush-mounted consumer units
Can be upgraded for surface-mounting or partially recessed mounting
Upgradeable for hollow-wall-mounting using UZ91P4
Wall box:
- non-warp, break-proof, non-flammable, low-halogen plastic
- with cable strain relief comb
- with detachable cable inlets
- combinable
Wall grips
Reversible opening (tool-free)
Communication channel for horizontal and vertical connection
Device support with removable DIN rail
Without terminals
Wire holder for professional cable organization
Cover with 90° quick-action screws, lead-sealable
45 mm slots for 12 devices, expandable to 14
Labelling system
Trim frame and sheet steel door, adjustable for uneven surface
Colour: White, RAL 9016
*in connection with hollow-wall-mounting set UZ91P4

—
03
— —
01 04

—
02
