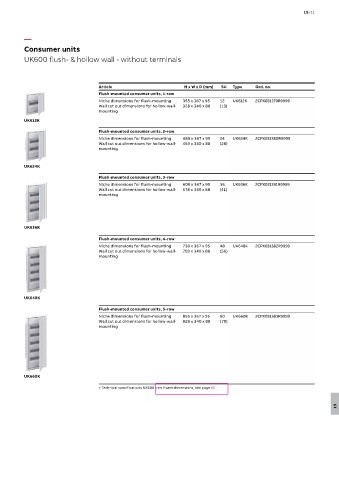

19/11

—
Consumer units
UK600 flush- & hollow wall - without terminals

Article H x W x D (mm) SU Type Ord. no.
Flush-mounted consumer units, 1-row
Niche dimensions for flush-mounting 355 x 367 x 95 12 UK612K 2CPX031379R9999
Wall cut out dimensions for hollow-wall- 328 x 340 x 88 (13)
mounting

UK612K
Flush-mounted consumer units, 2-row
Niche dimensions for flush-mounting 480 x 367 x 95 24 UK624K 2CPX031380R9999
Wall cut out dimensions for hollow-wall- 453 x 340 x 88 (28)
mounting

UK624K
Flush-mounted consumer units, 3-row
Niche dimensions for flush-mounting 605 x 367 x 95 36 UK636K 2CPX031381R9999
Wall cut out dimensions for hollow-wall- 578 x 340 x 88 (41)
mounting

UK636K

Flush-mounted consumer units, 4-row
Niche dimensions for flush-mounting 730 x 367 x 95 48 UK648K 2CPX031382R9999
Wall cut out dimensions for hollow-wall- 703 x 340 x 88 (56)
mounting

UK648K
Flush-mounted consumer units, 5-row
Niche dimensions for flush-mounting 855 x 367 x 95 60 UK660K 2CPX031383R9999
Wall cut out dimensions for hollow-wall- 828 x 340 x 88 (70)
mounting

UK660K
> Technical specifications UK600 trim frame dimensions, see page 60
