19/43

—

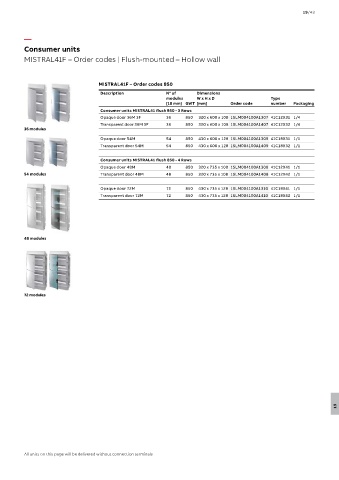

Consumer units
MISTRAL41F – Order codes | Flush-mounted – Hollow wall

MISTRAL41F – Order codes 850
Description N° of Dimensions
modules W x H x D Type
[18 mm] GWT [mm] Order code number Packaging
Consumer units MISTRAL41 flush 850 - 3 Rows
Opaque door 36M 3F 36 850 320 x 600 x 108 1SLM004100A1307 41C12X31 1/4
Transparent door 36M 3F 36 850 320 x 600 x 108 1SLM004100A1407 41C12X32 1/4
36 modules
Opaque door 54M 54 850 430 x 600 x 128 1SLM004100A1309 41C18X31 1/1
Transparent door 54M 54 850 430 x 600 x 128 1SLM004100A1409 41C18X32 1/1

Consumer units MISTRAL41 flush 850 - 4 Rows
Opaque door 48M 48 850 320 x 735 x 108 1SLM004100A1308 41C12X41 1/1
54 modules Transparent door 48M 48 850 320 x 735 x 108 1SLM004100A1408 41C12X42 1/1

Opaque door 72M 72 850 430 x 735 x 128 1SLM004100A1310 41C18X41 1/1
Transparent door 72M 72 850 430 x 735 x 128 1SLM004100A1410 41C18X42 1/1

48 modules

72 modules

19

All units on this page will be delivered without connection terminals
