19/86 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

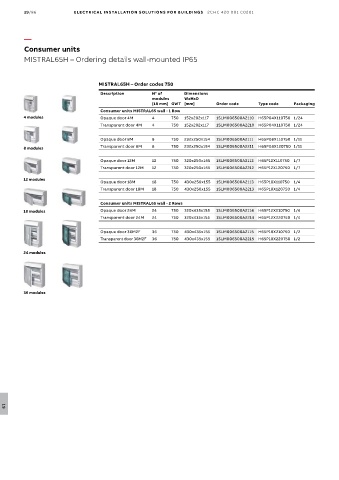

Consumer units
MISTRAL65H – Ordering details wall-mounted IP65

MISTRAL65H – Order codes 750
Description N° of Dimensions
modules WxHxD
[18 mm] GWT [mm] Order code Type code Packaging
Consumer units MISTRAL65 wall - 1 Row
4 modules Opaque door 4M 4 750 152x202x117 1SLM006500A2110 H65P04X110750 1/24
Transparent door 4M 4 750 152x202x117 1SLM006500A2210 H65P04X110750 1/24

Opaque door 8M 8 750 232x250x154 1SLM006500A2111 H65P08X110750 1/11
8 modules Transparent door 8M 8 750 232x250x154 1SLM006500A2211 H65P08X120750 1/11

Opaque door 12M 12 750 320x250x155 1SLM006500A2112 H65P12X110750 1/7
Transparent door 12M 12 750 320x250x155 1SLM006500A2212 H65P12X120750 1/7

12 modules
Opaque door 18M 18 750 430x250x155 1SLM006500A2113 H65P18X110750 1/4
Transparent door 18M 18 750 430x250x155 1SLM006500A2213 H65P18X120750 1/4

Consumer units MISTRAL65 wall - 2 Rows
18 modules Opaque door 24M 24 750 320x435x155 1SLM006500A2114 H65P12X210750 1/4
Transparent door 24M 24 750 320x435x155 1SLM006500A2214 H65P12X220750 1/4

Opaque door 36M2F 36 750 430x435x155 1SLM006500A2115 H65P18X210750 1/2
Transparent door 36M2F 36 750 430x435x155 1SLM006500A2215 H65P18X220750 1/2

24 modules

36 modules
