Automation boards
Components for distribution and mixed applications

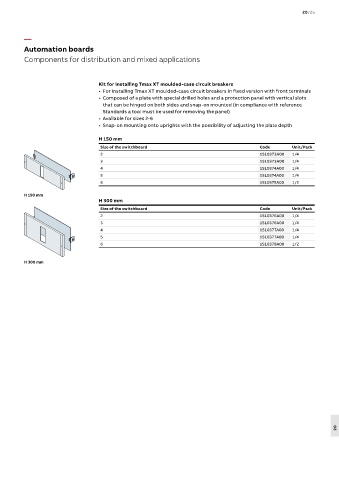

Kit for installing Tmax XT moulded-case circuit breakers
• For installing Tmax XT moulded-case circuit breakers in fixed version with front terminals
• Composed of a plate with special drilled holes and a protection panel with vertical slots
that can be hinged on both sides and snap-on mounted (in compliance with reference
Standards a tool must be used for removing the panel)
• Available for sizes 2-6
• Snap-on mounting onto uprights with the possibility of adjusting the plate depth

H 150 mm
Size of the switchboard Code Unit/Pack
2 1SL0373A00 1/4
3 1SL0373A00 1/4
4 1SL0374A00 1/4
5 1SL0374A00 1/4
6 1SL0375A00 1/2
H 150 mm
H 300 mm
Size of the switchboard Code Unit/Pack
2 1SL0376A00 1/4
3 1SL0376A00 1/4
4 1SL0377A00 1/4
5 1SL0377A00 1/4
6 1SL0378A00 1/2

H 300 mm
