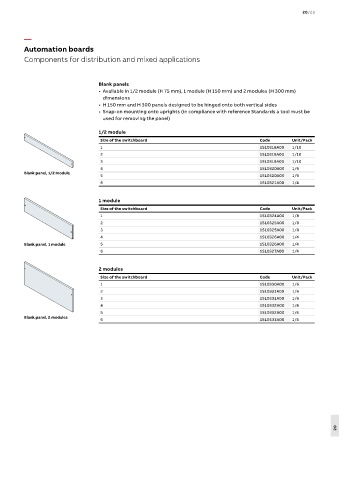

Automation boards
Components for distribution and mixed applications

Blank panels
• Available in 1/2 module (H 75 mm), 1 module (H 150 mm) and 2 modules (H 300 mm)
dimensions
• H 150 mm and H 300 panels designed to be hinged onto both vertical sides
• Snap-on mounting onto uprights (in compliance with reference Standards a tool must be
used for removing the panel)

1/2 module
Size of the switchboard Code Unit/Pack
1 1SL0318A00 1/10
2 1SL0319A00 1/10
3 1SL0319A00 1/10
4 1SL0320A00 1/6
Blank panel, 1/2 module
5 1SL0320A00 1/6
6 1SL0321A00 1/4

1 module
Size of the switchboard Code Unit/Pack
1 1SL0324A00 1/8
2 1SL0325A00 1/8
3 1SL0325A00 1/8
4 1SL0326A00 1/4
Blank panel, 1 module 5 1SL0326A00 1/4
6 1SL0327A00 1/4

2 modules
Size of the switchboard Code Unit/Pack
1 1SL0330A00 1/6
2 1SL0331A00 1/6
3 1SL0331A00 1/6
4 1SL0332A00 1/4
5 1SL0332A00 1/4
Blank panel, 2 modules
6 1SL0333A00 1/4
