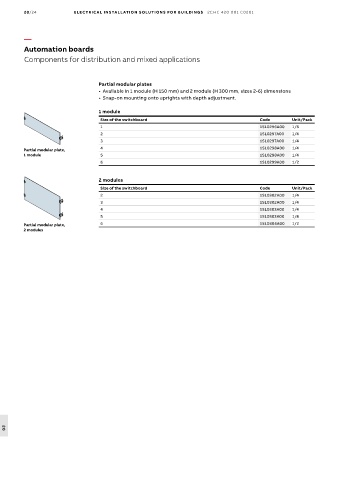

20/24 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
Automation boards
Components for distribution and mixed applications
Partial modular plates
• Available in 1 module (H 150 mm) and 2 module (H 300 mm, sizes 2-6) dimensions
• Snap-on mounting onto uprights with depth adjustment.
1 module
Size of the switchboard Code Unit/Pack
1 1SL0296A00 1/6
2 1SL0297A00 1/4
3 1SL0297A00 1/4
Partial modular plate, 4 1SL0298A00 1/4
1 module 5 1SL0298A00 1/4
6 1SL0299A00 1/2
2 modules
Size of the switchboard Code Unit/Pack
2 1SL0302A00 1/4
3 1SL0302A00 1/4
4 1SL0303A00 1/4
5 1SL0303A00 1/4
Partial modular plate, 6 1SL0304A00 1/2
2 modules
20
