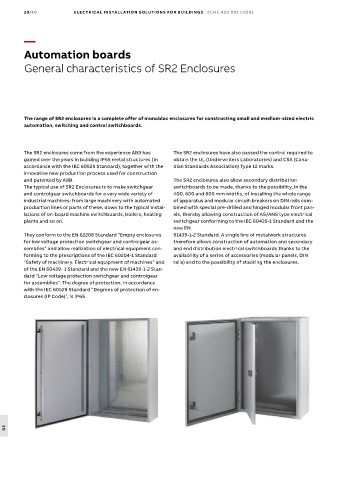

Automation boards

General characteristics of SR2 Enclosures

The range of SR2 enclosures is a complete offer of monobloc enclosures for constructing small and medium-sized electric
automation, switching and control switchboards.

The SR2 enclosures come from the experience ABB has The SR2 enclosures have also passed the control required to
gained over the years in building IP65 metal structures (in obtain the UL (Underwriters Laboratories) and CSA (Cana-
accordance with the IEC 60529 Standard), together with the dian Standards Association) Type 12 marks.
innovative new production process used for construction
and patented by ABB. The SR2 enclosures also allow secondary distribution
The typical use of SR2 Enclosures is to make switchgear switchboards to be made, thanks to the possibility, in the
and controlgear switchboards for a very wide variety of 400, 600 and 800 mm widths, of installing the whole range
industrial machines: from large machinery with automated of apparatus and modular circuit-breakers on DIN rails com-
production lines or parts of these, down to the typical instal- bined with special pre-drilled and hinged modular front pan-
lations of on-board machine switchboards, boilers, heating els, thereby allowing construction of AS/ANS type electrical
plants and so on. switchgear conforming to the IEC 60439-1 Standard and the
new EN
They conform to the EN 62208 Standard “Empty enclosures 61439-1-2 Standard. A single line of metalwork structures
for low voltage protection switchgear and controlgear as- therefore allows construction of automation and secondary
semblies” and allow realization of electrical equipment con- and end distribution electrical switchboards thanks to the
forming to the prescriptions of the IEC 60204-1 Standard availability of a series of accessories (modular panels, DIN
“Safety of machinery. Electrical equipment of machines” and rails) and to the possibility of stacking the enclosures.
of the EN 60439- 1 Standard and the new EN 61439-1-2 Stan-
dard “Low voltage protection switchgear and controlgear
for assemblies”. The degree of protection, in accordance
with the IEC 60529 Standard “Degrees of protection of en-
closures (IP Code)”, is IP65.
