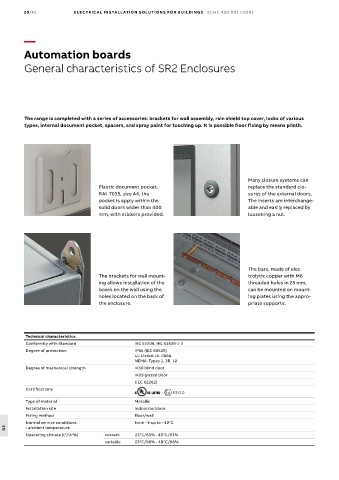

20/42 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

Automation boards

General characteristics of SR2 Enclosures

The range is completed with a series of accessories: brackets for wall assembly, rain shield top cover, locks of various
types, internal document pocket, spacers, and spray paint for touching up. It is possible floor fixing by means plinth.

Many closure systems can
Plastic document pocket, replace the standard clo-
RAL 7035, size A4, the sures of the external doors.
pocket is apply within the The inserts are interchange-
solid doors wider than 400 able and easily replaced by
mm, with stickers provided. loosening a nut.

The bars, made of elec-
The brackets for wall mount- trolytic copper with M6
ing allows installation of the threaded holes in 25 mm,
boxes on the wall using the can be mounted on mount-
holes located on the back of ing plates using the appro-
the enclosure. priate supports.

Technical characteristics
Conformity with Standard IEC 62208, IEC 61439-1-2
Degree of protection IP65 (IEC 60529)
UL Listed: UL 508A
NEMA: Types 1, 3R, 12
Degree of mechanical strength IK10 blind door
IK09 glazed door
(IEC 62262)
Certifications
II 3 G D
Type of material Metallic
Installation site Indoor/outdoor
Fixing method floor/wall
Normal service conditions from –5 up to +40°C
- ambient temperature
20
Operating climate (t°/Ur%) costant 23°C/83% - 40°C/93%
variable 23°C/98% - 40°C/98%
