20/43

—

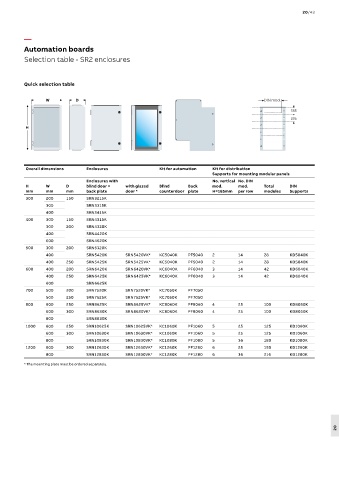

Automation boards
Selection table - SR2 enclosures

Quick selection table

W D DIN mod.

185
185
H

Overall dimensions Enclosures Kit for automation Kit for distribution
Supports for mounting modular panels
Enclosures with No. vertical No. DIN
H W D blind door + with glazed Blind Back mod. mod. Total DIN
mm mm mm back plate door * counterdoor plate H=185mm per row modules Supports
300 200 150 SRN3215K
300 SRN3315K
400 SRN3415K
400 300 150 SRN4315K
300 200 SRN4320K
400 SRN4420K
600 SRN4620K
500 300 200 SRN5320K
400 SRN5420K SRN5420VK* KC5040K PF5040 2 14 28 KD5040K
400 250 SRN5425K SRN5425VK* KC5040K PF5040 2 14 28 KD5040K
600 400 200 SRN6420K SRN6420VK* KC6040K PF6040 3 14 42 KD6040K
400 250 SRN6425K SRN6425VK* KC6040K PF6040 3 14 42 KD6040K
600 SRN6625K
700 500 200 SRN7520K SRN7520VK* KC7050K PF7050
500 250 SRN7525K SRN7525VK* KC7050K PF7050
800 600 250 SRN8625K SRN8625VK* KC8060K PF8060 4 25 100 KD8060K
600 300 SRN8630K SRN8630VK* KC8060K PF8060 4 25 100 KD8060K
800 SRN8830K
1000 600 250 SRN10625K SRN10625VK* KC1060K PF1060 5 25 125 KD1060K
600 300 SRN10630K SRN10630VK* KC1060K PF1060 5 25 125 KD1060K
800 SRN10830K SRN10830VK* KC1080K PF1080 5 36 180 KD1080K
1200 600 300 SRN12630K SRN12630VK* KC1260K PF1260 6 25 150 KD1260K
800 SRN12830K SRN12830VK* KC1280K PF1280 6 36 216 KD1280K
* The mounting plate must be ordered separately.
