Automation boards

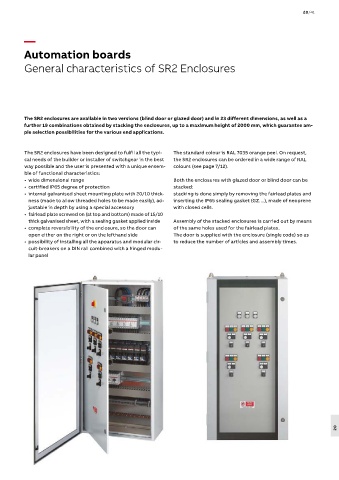

General characteristics of SR2 Enclosures

The SR2 enclosures are available in two versions (blind door or glazed door) and in 23 different dimensions, as well as a
further 19 combinations obtained by stacking the enclosures, up to a maximum height of 2000 mm, which guarantee am-
ple selection possibilities for the various end applications.

The SR2 enclosures have been designed to fulfil all the typi- The standard colour is RAL 7035 orange peel. On request,
cal needs of the builder or installer of switchgear in the best the SR2 enclosures can be ordered in a wide range of RAL
way possible and the user is presented with a unique ensem- colours (see page 7/12).
ble of functional characteristics:
• wide dimensional range Both the enclosures with glazed door or blind door can be
• certified IP65 degree of protection stacked:
• internal galvanised sheet mounting plate with 20/10 thick- stacking is done simply by removing the fairlead plates and
ness (made to allow threaded holes to be made easily), ad- inserting the IP65 sealing gasket (GZ....), made of neoprene
justable in depth by using a special accessory with closed cells.
• fairlead plate screwed on (at top and bottom) made of 15/10
thick galvanised sheet, with a sealing gasket applied inside Assembly of the stacked enclosures is carried out by means
• complete reversibility of the enclosure, so the door can of the same holes used for the fairlead plates.
open either on the right or on the lefthand side The door is supplied with the enclosure (single code) so as
• possibility of installing all the apparatus and modular cir- to reduce the number of articles and assembly times.
cuit-breakers on a DIN rail combined with a hinged modu-
lar panel
