ABB | SACE Emax 2

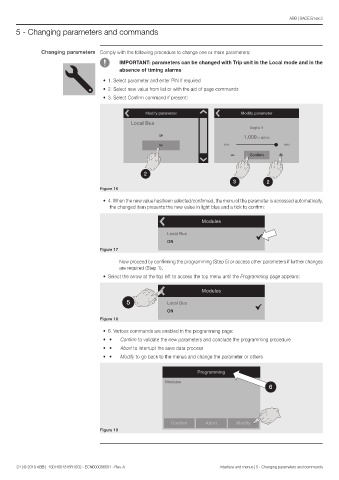

5 - Changing parameters and commands

Changing parameters Comply with the following procedure to change one or more parameters:
IMPORTANT: parameters can be changed with Trip unit in the Local mode and in the
absence of timing alarms
• 1. Select parameter and enter PIN if required
• 2. Select new value from list or with the aid of page commands
• 3. Select Confirm command if present:

Figure 16
• 4. When the new value has been selected/confirmed, the menu of the parameter is accessed automatically,
the changed item presents the new value in light blue and a tick to confirm:

Figure 17

Now proceed by confirming the programming (Step 5) or access other parameters if further changes
are required (Step 1).
• Select the arrow at the top left to access the top menu until the Programming page appears:

Figure 18

• 6. Various commands are enabled in the programming page:
• • Confirm to validate the new parameters and conclude the programming procedure
• • Abort to interrupt the save data process
• • Modify to go back to the menus and change the parameter or others

Figure 19

24 | © 2019 ABB | 1SDH001316R1002 - ECN000086501 - Rev. A Interface and menus | 5 - Changing parameters and commands
