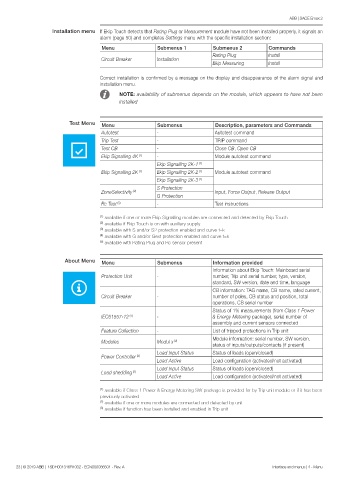

ABB | SACE Emax 2
Installation menu If Ekip Touch detects that Rating Plug or Measurement module have not been installed properly, it signals an
alarm (page 50) and completes Settings menu with the specific installation section:
Menu Submenus 1 Submenus 2 Commands
Rating Plug Install
Circuit Breaker Installation
Ekip Measuring Install

Correct installation is confirmed by a message on the display and disappearance of the alarm signal and
installation menu.
NOTE: availability of submenus depends on the module, which appears to have not been
installed

Test Menu Menu Submenus Description, parameters and Commands
Autotest - Autotest command
Trip Test - TRIP command
Test CB - Close CB, Open CB
Ekip Signalling 4K (1) - Module autotest command
Ekip Signalling 2K-1 (1)
Ekip Signalling 2K (1) Ekip Signalling 2K-2 (1) Module autotest command
Ekip Signalling 2K-3 (1)
S Protection
ZoneSelectivity (2) Input, Force Output, Release Output
G Protection
Rc Test (5) - Test instructions

(1) available if one or more Ekip Signalling modules are connected and detected by Ekip Touch
(2) available if Ekip Touch is on with auxiliary supply
(3) available with S and/or S2 protection enabled and curve t=k
(4) available with G and/or Gext protection enabled and curve t=k
(5) available with Rating Plug and Rc sensor present

About Menu Menu Submenus Information provided
Information about Ekip Touch: Mainboard serial
Protection Unit - number, Trip unit serial number, type, version,
standard, SW version, date and time, language
CB information: TAG name, CB name, rated current,
Circuit Breaker - number of poles, CB status and position, total
operations, CB serial number
Status of 1% measurements (from Class 1 Power
IEC61557-12 (1) - & Energy Metering package), serial number of
assembly and current sensors connected
Feature Collection - List of tripped protections in Trip unit
Module information: serial number, SW version,
Modules Modul x (2)
status of inputs/outputs/contacts (if present)
Load Input Status Status of loads (open/closed)
Power Controller (3)
Load Active Load configuration (activated/not activated)
Load Input Status Status of loads (open/closed)
Load shedding (3)
Load Active Load configuration (activated/not activated)

(1) available if Class 1 Power & Energy Metering SW package is provided for by Trip unit module or if it has been
previously activated
(2) available if one or more modules are connected and detected by unit
(3) available if function has been installed and enabled in Trip unit

23 | © 2019 ABB | 1SDH001316R1002 - ECN000086501 - Rev. A Interface and menus | 4 - Menu
