ABB | SACE Emax 2

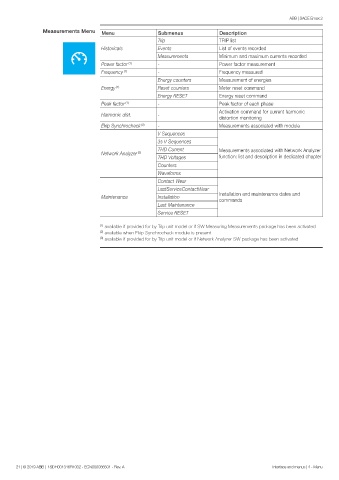

Measurements Menu Menu Submenus Description
Trip TRIP list
Historicals Events List of events recorded
Measurements Minimum and maximum currents recorded
Power factor (1) - Power factor measurement
Frequency (1) - Frequency measured
Energy counters Measurement of energies
Energy (1) Reset counters Meter reset command
Energy RESET Energy reset command
Peak factor (1) - Peak factor of each phase
Activation command for current harmonic
Harmonic dist. -
distortion monitoring
Ekip Synchrocheck (2) - Measurements associated with module
V Sequences
3s V Sequences
THD Current Measurements associated with Network Analyzer
Network Analyzer (3)
THD Voltages function: list and description in dedicated chapter
Counters
Waveforms
Contact Wear
LastServiceContactWear
Maintenance Installation Installation and maintenance dates and
commands
Last Maintenance
Service RESET

(1) available if provided for by Trip unit model or if SW Measuring Measurements package has been activated
(2) available when Ekip Synchrocheck module is present
(3) available if provided for by Trip unit model or if Network Analyzer SW package has been activated

21 | © 2019 ABB | 1SDH001316R1002 - ECN000086501 - Rev. A Interface and menus | 4 - Menu
