2/32 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

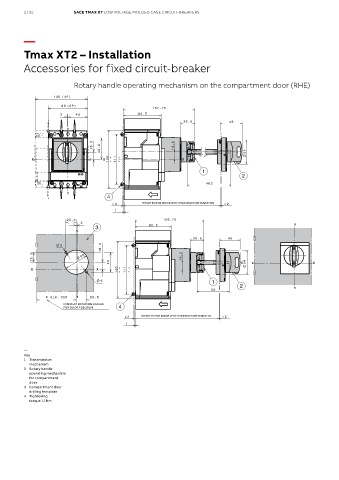

Tmax XT2 – Installation

Accessories for fixed circuit-breaker

Rotary handle operating mechanism on the compartment door (RHE)

2

4
HEIGHTS FOR DOOR WITH MAXIMUM DISTANCE 581

2

MINIMUM ROTATION RADIUS
FOR DOOR FULCRUM 4
HEIGHTS FOR DOOR WITH MINIMUM DISTANCE 171

—
Key
1 Transmission
mechanism
2 Rotary handle
operating mechanism
for compartment
door
3 Compartment door
drilling template
4 Tightening
torque 1.1Nm
