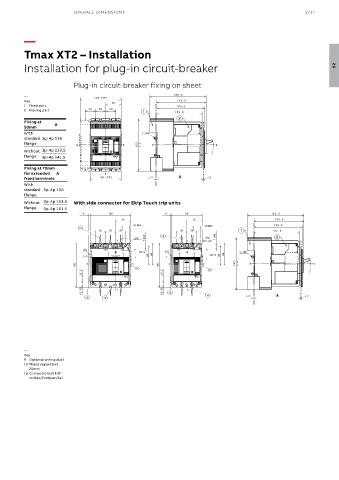

OVER ALL DIMENSIONS 2/37

—

Tmax XT2 – Installation

Installation for plug-in circuit-breaker 02

Plug-in circuit-breaker fixing on sheet

—
Key
1 Fixed part
2 Moving part
Fixing at
50mm A
With
standard 3p-4p 136
flange
Without 3p-4p 133.5
flange 3p-4p 141.5
Fixing at 70mm
for extended A
front terminals
With
standard 3p-4p 156
flange
Without 3p-4p 153.5 With side connector for Ekip Touch trip units
flange 3p-4p 161.5

—
Key
9 Optional wiring duct
10 Phase separators
25mm
15 Connection kit F/P
IntBus/ExtNeut/Sel
