2/34 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

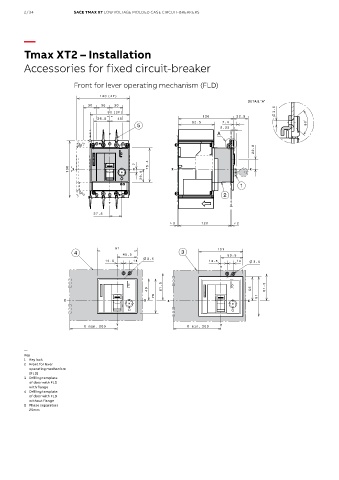

Tmax XT2 – Installation

Accessories for fixed circuit-breaker

Front for lever operating mechanism (FLD)

DETAIL "A"

—
Key
1 Key lock
2 Front for lever
operating mechanism
(FLD)
3 Drilling template
of door with FLD
with flange
4 Drilling template
of door with FLD
without flange
5 Phase separators
25mm
