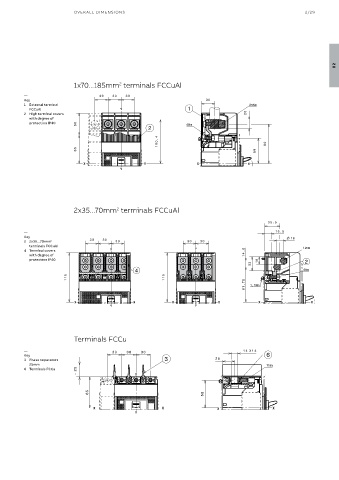

OVER ALL DIMENSIONS 2/29

02

1x70...185mm terminals FCCuAl
2
—
Key
1 External terminal
FCCuAl
2 High terminal covers
with degree of
protection IP40

2x35...70mm terminals FCCuAl
2

—
Key
2 2x35...70mm 2
terminals FCCuAl
4 Terminal covers
with degree of
protection IP40

Terminals FCCu

—
Key
3 Phase separators
25mm
6 Terminals FCCu
