2/30 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

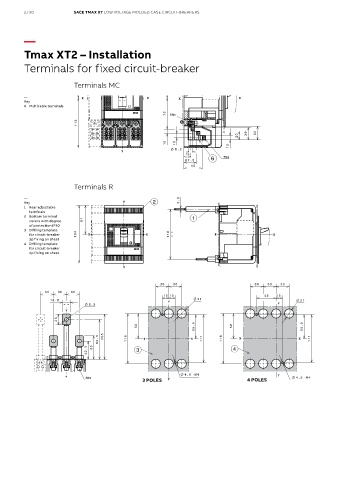

Tmax XT2 – Installation

Terminals for fixed circuit-breaker

Terminals MC

—
Key
6 Multicable terminals

Terminals R

—
Key
1 Rear adjustable
terminals
2 Bottom terminal
covers with degree
of protection IP30
3 Drilling template
for circuit-breaker
3p fixing on sheet
4 Drilling template
for circuit-breaker
4p fixing on sheet

3 POLES 4 POLES
