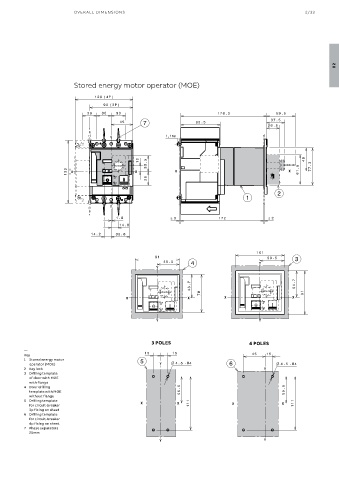

OVER ALL DIMENSIONS 2/33
02
Rotary handle operating mechanism on the compartment door (RHE) Stored energy motor operator (MOE)
3 POLES 4 POLES
—
Key
1 Stored energy motor
operator (MOE)
2 Key lock
3 Drilling template
of door with MOE
with flange
4 Door drilling
template with MOE
without flange
5 Drilling template
for circuit-breaker
3p fixing on sheet
6 Drilling template
for circuit-breaker
4p fixing on sheet
7 Phase separators
25mm
