P. 150
2/70 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS
—

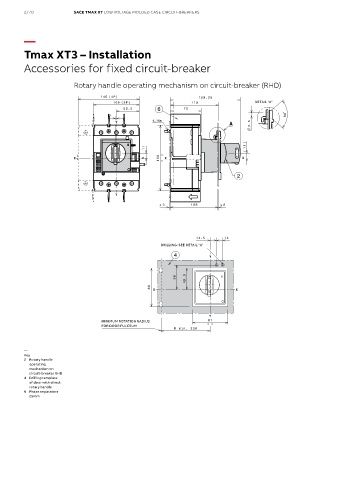

Tmax XT3 – Installation
Accessories for fixed circuit-breaker
Rotary handle operating mechanism on circuit-breaker (RHD)
DETAIL "A"
DRILLING: SEE DETAIL “A”
1SDC21086FF0001
MINIMUM ROTATION RADIUS
FOR DOOR FULCRUM
—
Key
2 Rotary handle
operating
mechanism on
circuit-breaker RHD
4 Drilling template
of door with direct
rotary handle
6 Phase separators
25mm
