2/72 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

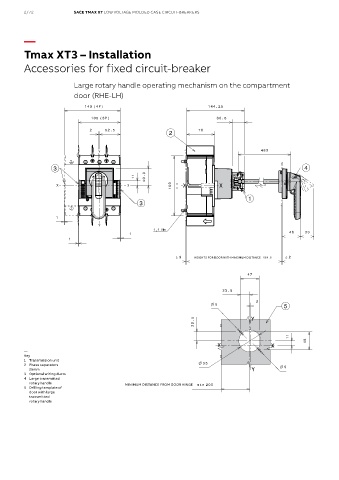

Tmax XT3 – Installation

Accessories for fixed circuit-breaker

Large rotary handle operating mechanism on the compartment
door (RHE-LH)

HEIGHTS FOR DOOR WITH MAXIMUM DISTANCE

—
Key
1 Transmission unit
2 Phase separators
25mm
3 Optional wiring ducts
4 Large transmitted
rotary handle MINIMUM DISTANCE FROM DOOR HINGE
5 Drilling template of
door with large
transmitted
rotary handle
