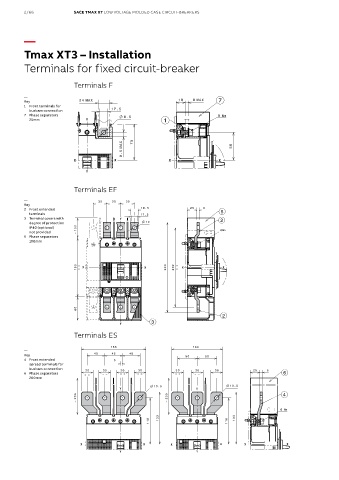

2/66             SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

          Tmax XT3 – Installation


          Terminals for fixed circuit-breaker


                           Terminals F

          —
          Key
          1  Front terminals for
           busbars connection
          7  Phase separators
           25mm













                           Terminals EF
          —
          Key
          2  Front extended
           terminals
          3  Terminal covers with
           degree of protection
           IP40 (optional)
           not provided
          5  Phase separators
           100mm


















                           Terminals ES


          —
          Key
          4  Front extended
           spread terminals for
           busbars connection
          6  Phase separators
           200mm
