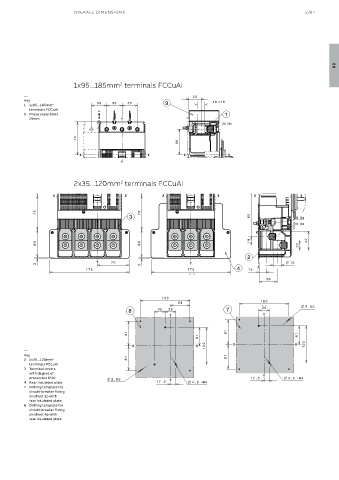

OVER ALL DIMENSIONS 2/67
02
1x95...185mm terminals FCCuAl
2
—
Key
1 1x95...185mm 2
terminals FCCuAl
9 Phase separators
25mm
2x35...120mm terminals FCCuAl
2
—
Key
2 2x35...120mm 2
terminals FCCuAl
3 Terminal covers
with degree of
protection IP40
4 Rear insulated plate
7 Drilling template for
circuit-breaker fixing
on sheet 3p with
rear insulated plate
8 Drilling template for
circuit-breaker fixing
on sheet 4p with
rear insulated plate
