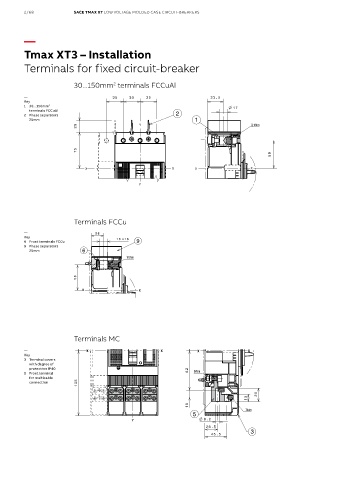

Tmax XT3 – Installation

Terminals for fixed circuit-breaker

30...150mm terminals FCCuAl
2
—
Key
1 30...150mm 2
terminals FCCuAl
2 Phase separators
25mm

Terminals FCCu
—
Key
6 Front terminals FCCu
9 Phase separators
25mm

Terminals MC

—
Key
3 Terminal covers
with degree of
protection IP40
5 Front terminal
for multicable
connection
