2/76 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

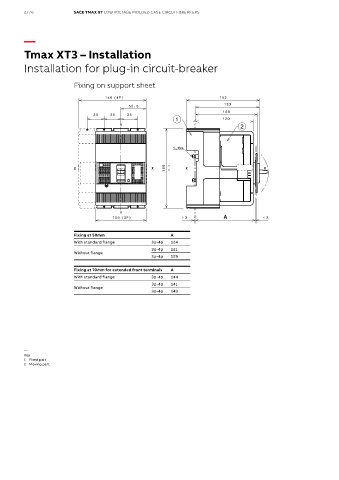

Tmax XT3 – Installation

Installation for plug-in circuit-breaker

Fixing on support sheet

Fixing at 50mm A
With standard flange 3p-4p 124
3p-4p 121
Without flange
3p-4p 129

Fixing at 70mm for extended front terminals A
With standard flange 3p-4p 144
3p-4p 141
Without flange
3p-4p 149

—
Key
1 Fixed part
2 Moving part
