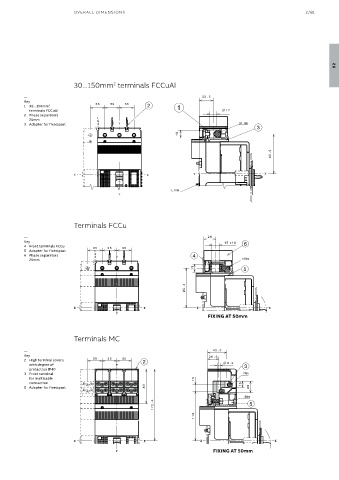

OVER ALL DIMENSIONS 2/81
02
30...150mm terminals FCCuAl
2
—
Key
1 30...150mm 2
terminals FCCuAl
2 Phase separators
25mm
3 Adapter for fixed part
Terminals FCCu
—
Key
4 Front terminals FCCu
5 Adapter for fixed part
6 Phase separators
25mm
FIXING AT 50mm
Terminals MC
—
Key
2 High terminal covers
with degree of
protection IP40
3 Front terminal
for multicable
connection
5 Adapter for fixed part
FIXING AT 50mm
