OVER ALL DIMENSIONS 2/79

—

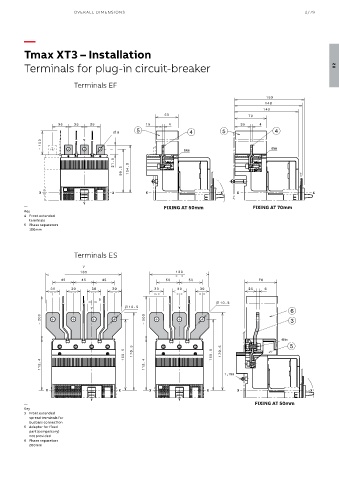

Tmax XT3 – Installation

Terminals for plug-in circuit-breaker 02

Terminals EF

— FIXING AT 50mm FIXING AT 70mm
Key
4 Front extended
terminals
5 Phase separators
100mm

Terminals ES

— FIXING AT 50mm
Key
3 Front extended
spread terminals for
busbars connection
5 Adapter for fixed
part (compulsory)
not provided
6 Phase separators
200mm
