2/80 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

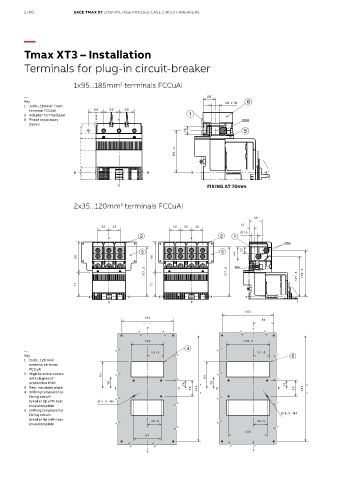

Tmax XT3 – Installation

Terminals for plug-in circuit-breaker

1x95...185mm terminals FCCuAl
2
—
Key
1 1x95...185mm 2 front
terminal FCCuAl
5 Adapter for fixed part
6 Phase separators
25mm

FIXING AT 70mm

2x35...120mm terminals FCCuAl
2

—
Key
1 2x35...120 mm 2
external terminal
FCCuAl
2 High terminal covers
with degree of
protection IP40
3 Rear insulated plate
4 Drilling template for
fixing circuit-
breaker 3p with rear
insulated plate
5 Drilling template for
fixing circuit-
breaker 4p with rear
insulated plate
