Page 163 - SACE Tmax XT - Technical Catalogue

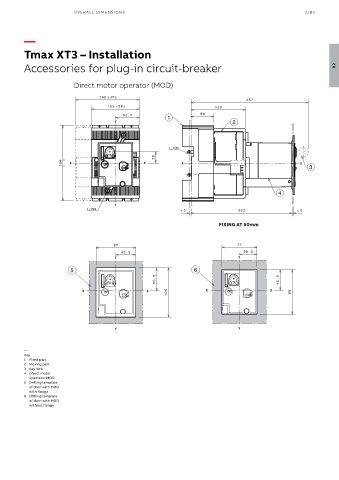

OVER ALL DIMENSIONS 2/83

—

Tmax XT3 – Installation

Accessories for plug-in circuit-breaker 02

Direct motor operator (MOD)

FIXING AT 50mm

—
Key
1 Fixed part
2 Moving part
3 Key lock
4 Direct motor
opetrator MOD
5 Drilling template
of door with MOD
with flange
6 Drilling template
of door with MOD
without flange
