2/82 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

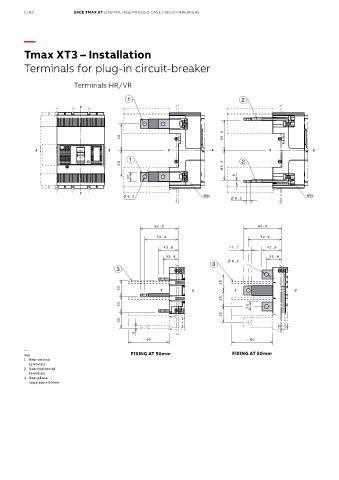

Tmax XT3 – Installation

Terminals for plug-in circuit-breaker

Terminals HR/VR

— FIXING AT 50mm
Key FIXING AT 50mm
1 Rear vertical
terminals
2 Rear horizontal
terminals
3 Rear phase
separators 90mm
