OVER ALL DIMENSIONS 2/87

—

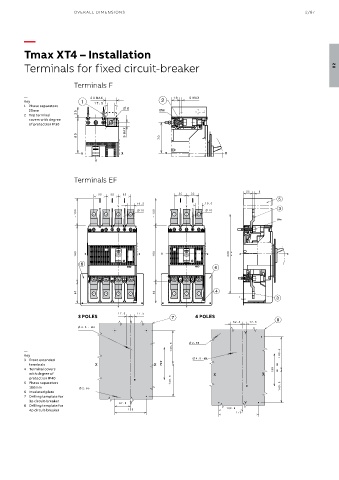

Tmax XT4 – Installation

Terminals for fixed circuit-breaker 02

Terminals F

—
Key
1 Phase separators
25mm
2 Top terminal
covers with degree
of protection IP30

Terminals EF

3 POLES 4 POLES

—
Key
3 Front extended
terminals
4 Terminal covers
with degree of
protection IP40
5 Phase separators
100mm
6 Insulated plate
7 Drilling template for
3p circuit-breaker
8 Drilling template for
4p circuit-breaker
