OVER ALL DIMENSIONS                                                              2/107










                                                                                                                       02

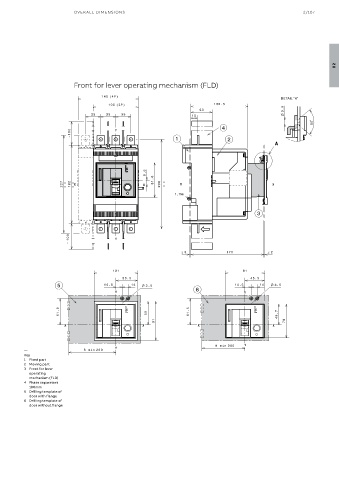

                           Front for lever operating mechanism (FLD)

                                                                                                    DETAIL "A"





















































          —
          Key
          1  Fixed part
          2  Moving part
          3  Front for lever
           operating
           mechanism (FLD)
          4  Phase separators
           100mm
          5  Drilling template of
           door with flange
          6  Drilling template of
           door without flange
