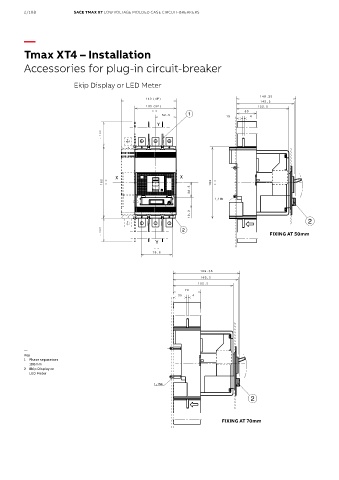

2/108            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

          Tmax XT4 – Installation


          Accessories for plug-in circuit-breaker


                           Ekip Display or LED Meter































                                                                                                FIXING AT 50mm























          —
          Key
          1  Phase separators
           100mm
          2  Ekip Display or
           LED Meter









                                                                               FIXING AT 70mm
