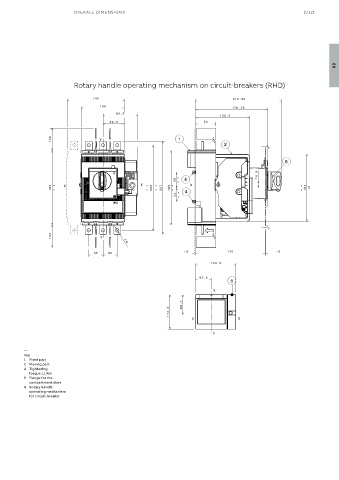

Rotary handle operating mechanism on circuit-breakers (RHD)
—
Key
1 Fixed part
2 Moving part
4 Tightening
torque 1.1 Nm
5 Flange for the
compartment door
6 Rotary handle
operating mechanism
for circuit-breaker
