OVER ALL DIMENSIONS 2/119

—

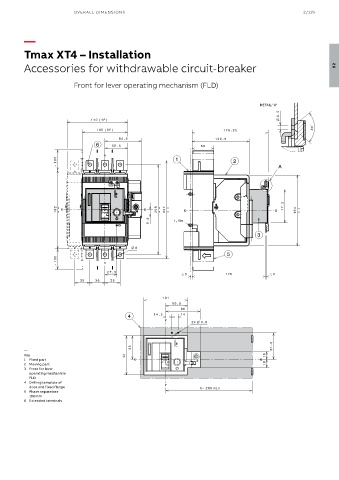

Tmax XT4 – Installation

Accessories for withdrawable circuit-breaker 02

Front for lever operating mechanism (FLD)

DETAIL "A"

—
Key
1 Fixed part
2 Moving part
3 Front for lever
operating mechanism
FLD
4 Drilling template of
door and fixed flange
5 Phase separators
100mm
6 Extended terminals
