2/140            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

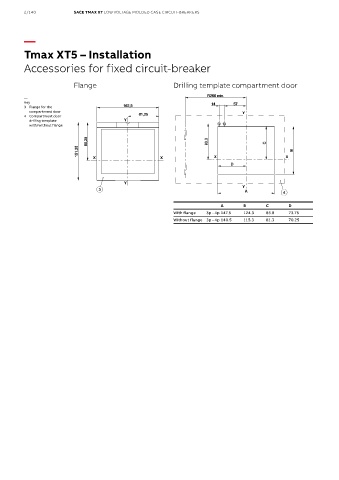

          Tmax XT5 – Installation


          Accessories for fixed circuit-breaker


                           Flange                             Drilling template compartment door

          —
          Key
          3  Flange for the
           compartment door
          4  Compartment door
           drilling template
           with/without flange















                                                                               A       B      C       D
                                                              With flange  3p - 4p 147.5  124.3  85.8  73.75
                                                              Without flange 3p - 4p 140.5  115.3  81.3  70.25
