OVER ALL DIMENSIONS                                                             2/139










                                                                                                                       02

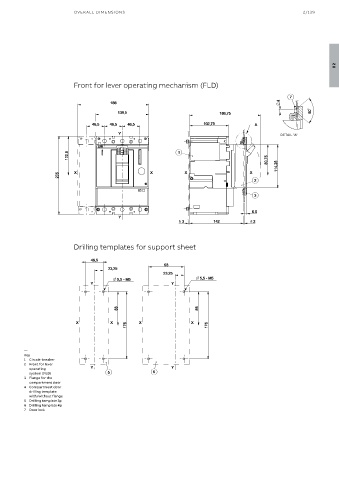

                           Front for lever operating mechanism (FLD)









                                                                                                    DETAIL "A"






















                           Drilling templates for support sheet





















          —
          Key
          1  Circuit-breaker
          2  Front for lever
           operating
           system (FLD)
          3  Flange for the
           compartment door
          4  Compartment door
           drilling template
           with/without flange
          5  Drilling template 3p
          6  Drilling template 4p
          7  Door lock
