2/142            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

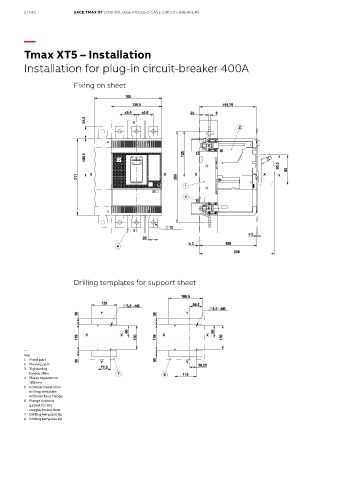

          Tmax XT5 – Installation


          Installation for plug-in circuit-breaker 400A


                           Fixing on sheet









































                           Drilling templates for support sheet













          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Phase separators
           100mm
          5  Compartment door
           drilling template
           with/without flange
          6  Flange without
           gasket for the
           compartment door
          7  Drilling template 3p
          8  Drilling template 4p
