Page 223 - SACE Tmax XT - Technical Catalogue
P. 223

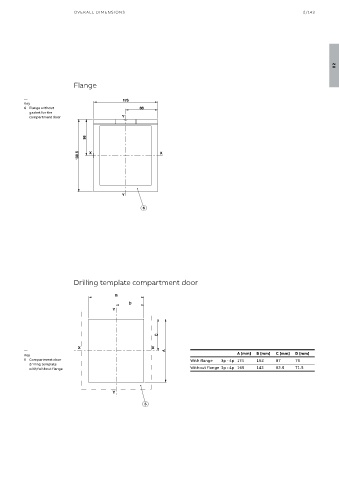

OVER ALL DIMENSIONS 2/143
02
Flange
—
Key
6 Flange without
gasket for the
compartment door
Drilling template compartment door
—
Key A [mm] B [mm] C [mm] D [mm]
5 Compartment door With flange 3p - 4p 174 152 87 76
drilling template
with/without flange Without flange 3p - 4p 165 143 82.5 71.5
