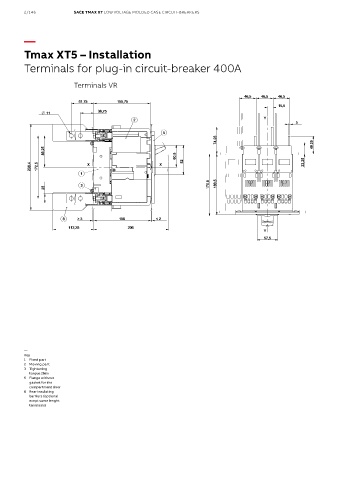

2/146            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

          Tmax XT5 – Installation


          Terminals for plug-in circuit-breaker 400A


                           Terminals VR
























































          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          5  Flange without
           gasket for the
           compartment door
          8  Rear insulating
           barriers (optional
           exept same lenght
           terminals)
