2/148 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

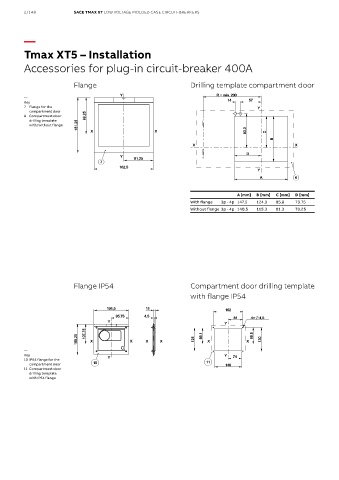

Tmax XT5 – Installation

Accessories for plug-in circuit-breaker 400A

Flange Drilling template compartment door

—
Key
7 Flange for the
compartment door
8 Compartment door
drilling template
with/without flange

A [mm] B [mm] C [mm] D [mm]
With flange 3p - 4p 147.5 124.3 85.8 73.75
Without flange 3p - 4p 140.5 115.3 81.3 70.25

Flange IP54 Compartment door drilling template
with flange IP54

—
Key
10 IP54 flange for the
compartment door
11 Compartment door
drilling template
with IP54 flange
