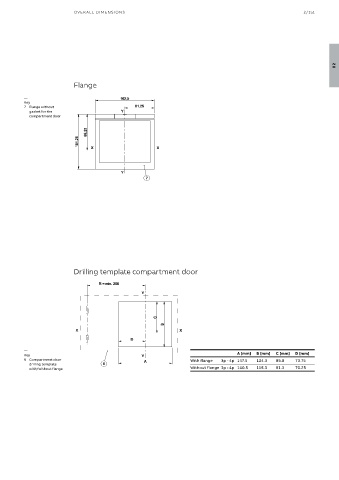

OVER ALL DIMENSIONS 2/151
02
Flange
—
Key
7 Flange without
gasket for the
compartment door
Drilling template compartment door
—
Key A [mm] B [mm] C [mm] D [mm]
6 Compartment door With flange 3p - 4p 147.5 124.3 85.8 73.75
drilling template
with/without flange Without flange 3p - 4p 140.5 115.3 81.3 70.25
