OVER ALL DIMENSIONS                                                              2/147



          —

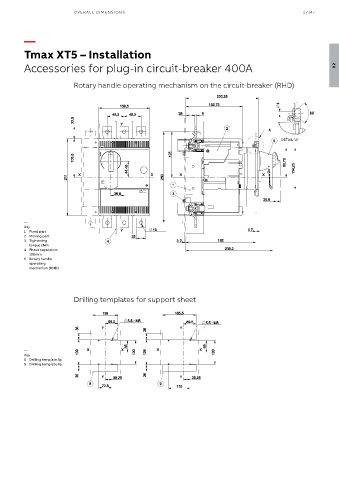

          Tmax XT5 – Installation


          Accessories for plug-in circuit-breaker 400A                                                                 02


                           Rotary handle operating mechanism on the circuit-breaker (RHD)










                                                                                                    DETAIL "A"
















          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Phase separators
           100mm
          5  Rotary handle
           operating
           mechanism (RHD)





                           Drilling templates for support sheet









          —
          Key
          8  Drilling template 3p
          9  Drilling template 4p
