2/152 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

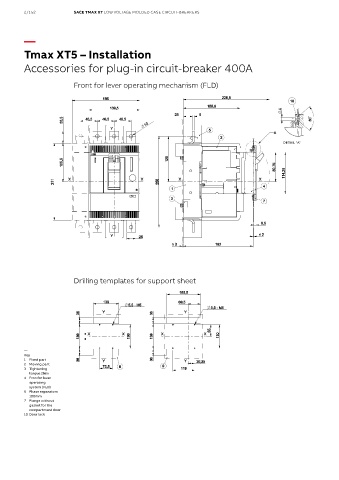

Tmax XT5 – Installation

Accessories for plug-in circuit-breaker 400A

Front for lever operating mechanism (FLD)

DETAIL "A"

Drilling templates for support sheet

—
Key
1 Fixed part
2 Moving part
3 Tightening
torque 2Nm
4 Fron for lever
operating
system (FLD)
5 Phase separators
100mm
7 Flange without
gasket for the
compartment door
10 Door lock
